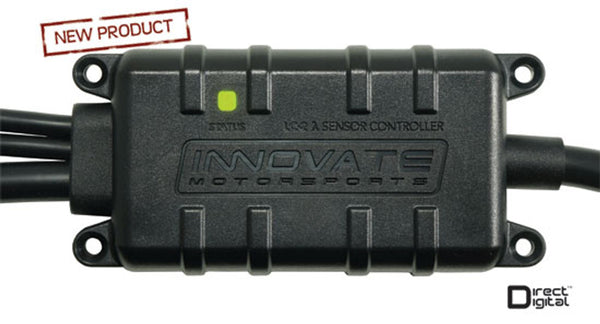

LC-2 Digital Wideband O2 Sensor Kit

P3Cars SKU: P3LC2WB

$189.00

Shipping calculated at checkout

Available Now!

Need to keep an eye on your Air/Fuel Ratio but your vehicle doesn't have a factory wideband? No problem!

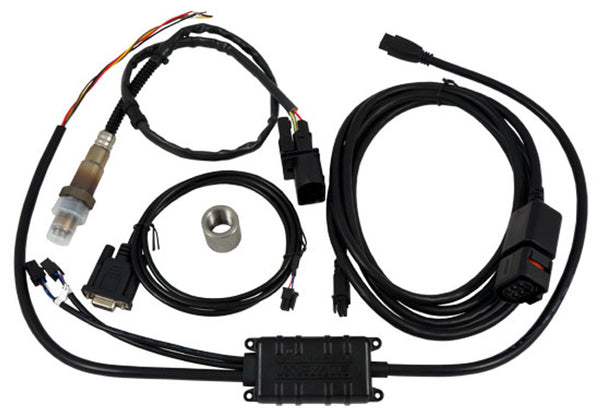

The Innovate Motorsports LC-2 wideband kit comes with everything you need to read AFR right on your Multi-Gauge. This is the easiest way to keep an eye on your AFR without adding clutter to your interior. The LC-2 utilizes 100% digital wideband air/fuel ratio technology. With it's patented award-winning DirectDigital™ signal processing technology, the LC-2 can show exactly how rich or lean an engine is running at any load. The LC-2’s self-calibrating circuitry also compensates for changes in temperature, altitude, and sensor condition. The LC-2 includes a digital input/output, 2 full-programmable analog outputs, and is ideal for applications such as dynamometers, data acquisition systems, standalone ECUs, and gauges.

KEY FEATURES

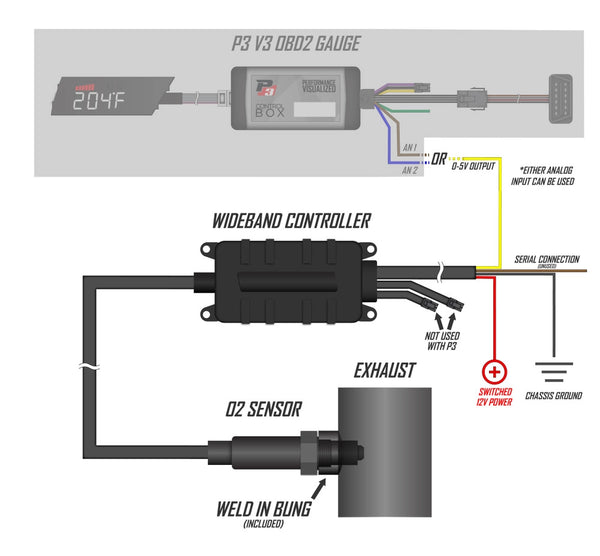

  • Can be tied directly into P3 Multi-Gauge using analog input
  • Uses Bosch LSU 4.9 sensor
  • Patented DirectDigital™ Wideband Technology
  • Wideband O² Compatible with ALL fuel types
  • Ability to calibrate O² sensor for maximum accuracy
  • Integrated dual-color status LED (Green/Red)
  • *2-Configurable linear 0-5v analog outputs
  • 8ft sensor cable
  • Positive lock connectors for all connections
  • Innovate MTS serial in/out
  • Serial connection to your PC
  • Real-time display data on screen and/or with powerful LogWorks software

*Two fully programmable linear analog outputs to connect to analog gauges, dyno computers, ECUs, piggyback controllers, and other devices with analog inputs.

DEFAULT OUTPUT CONFIGURATION

Analog Output 1- (Yellow wire0 volt = 7.35 AFR (.5 Lambda) 5 volts = 22.39 AFR (1.52 Lambda)

Analog Output 2- (Brown wire) 1.1 volt = 14 AFR  .1 volt = 15 AFR

With the provided LM Programmer software these analog outputs may also be configured by the user.

*Program Cable (Only needed for Datalogging and to change the Fuel Type Setting), Manual, LogWorks Software (Free Download).

Innovate LC-2 User's Instruction Manual



SPECIFICATIONS

Power

Operating Voltage 9.8V to 16V DC
Input Current, O² heater initial warm-up 2.0A nominal, 3A max
Input Current, O² normal operation 0.8A nominal, 1.1A max

Environmental

Operating ambient temperature 0° to 140° F (−17.78° to 60° C)
Storage ambient temperature −40° to 185° F (−40° to 85° C)
Water resistance Splash resistant, non-submersible

Sensors

Compatible Types Bosch™ LSU4.2 & Bosch™ LSU4.9
Bosch™ Heater Control Digital PID via pump-cell impedance
Measurements
Lambda .5 to 1.52
Air/Fuel Ratio 7.35 to 22.39
Accuracy
For Lambda Accurate to +/- .007 (.1 AFR)

Response Time

Free Air to Lambda < 100 mS ( < 25 mS typical)
Inputs
Serial 1- Innovate MTS Compatible
Outputs
Analog

2- 0-5VDC, 10 bit resolution, programmable

Serial 1- Innovate MTS Compatible
Communication
Serial MTS (Innovate Modular Tuning System) compatible
